World premiere of the new Hatz three-cylinder diesel engines

The first three-cylinder models will go into series production in 2018. They will expand the Hatz H-series with powerful, efficient and compact engines in the power range up to 46 kilowatts. Hatz will exclusively present the new family members at Bauma 2016, the world’s leading trade fair for the construction business, in hall A4 on stand 548.

Developed for compact applications

The concept of the new three-cylinders aims to be an ideal solution for today’s compact machine class up to 37 kilowatts. Especially for this task the goal is not only to house engines in a compact installation space: The form and operation of the machines must remain unchanged. If exhaust emission after-treatment becomes necessary, the little brother of the four-cylinder engine profits in particular from the compactness and the low raw emissions of the H-family.

Smaller space requirement, increased power

The automotive industry has been successfully practicing the downsizing concept for years. New engines inherited this concept as part of the H-family. As the first downsizing industrial engine with three cylinders the Hatz 3H50 with up to 2800 revolutions per minute and just 1.5 litres will replace engines with displacements over 2.5 litres in the future. The torque and response behaviour are considerably superior to the present generation. At the same time the fuel consumption values are significantly reduced. This could be achieved, amongst other factors, thanks to the iHACS technology (intelligent Hatz Advanced Combustion Strategy). Its sophisticated combustion chamber geometry, Bosch injection technology, minimized friction and a charge air pressure of 1.7 bar ensure the right dimension of power in less than a fifth of a cubic meter only. In a word: right-sizing.

Compliant with emission standards

Following the family concepts, the various 3H50 models are also orientated on the currently valid and future emission standards.

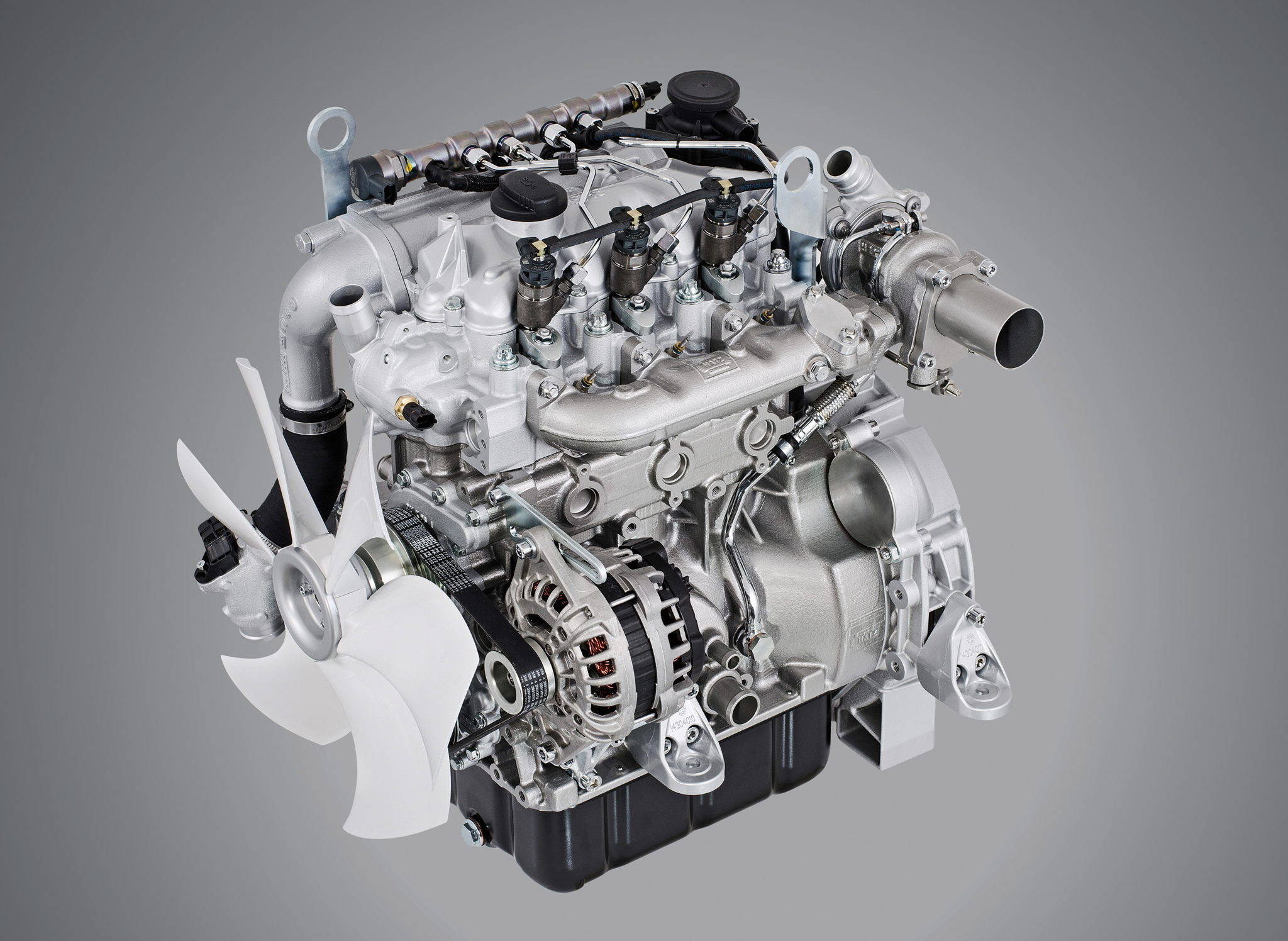

The 133 kilograms lightweight Hatz 3H50TI doesn’t need any exhaust emission after-treatment at all. Nevertheless, the engine achieves compliance with the EU Stage IIIA and US EPA Tier 4 interim standards in the power range from 19 to 37 kilowatts. Avoiding sulphur sensitive components, the use of diesel fuel with up to 5000 ppm sulphur is no problem. Higher ambient temperatures in comparison to other 3H50 models are also possible. With a maximum torque of 200 newton meters (at 1600 to 2200 revolutions per minute) and up to 46 kilowatts the Hatz 3H50TI is the top performer of the three-cylinders.

The Hatz 3H50TIC was primarily developed for the US market and Canada as well as some Asian countries. In order to ensure compliance with the emission standards US EPA Tier 4 final and EU Stage IIIB, the proven combination of an external gas recirculation (EGR) and a diesel oxidation catalyst (DOC) reduces substances potentially harmful to the environment to the required level – without the need of a diesel particulate filter (DPF). Therefore the engine still achieves up to 42 kilowatts and provides a torque of 185 newton meters. The additional components add approximately 20 kilograms of extra weight.

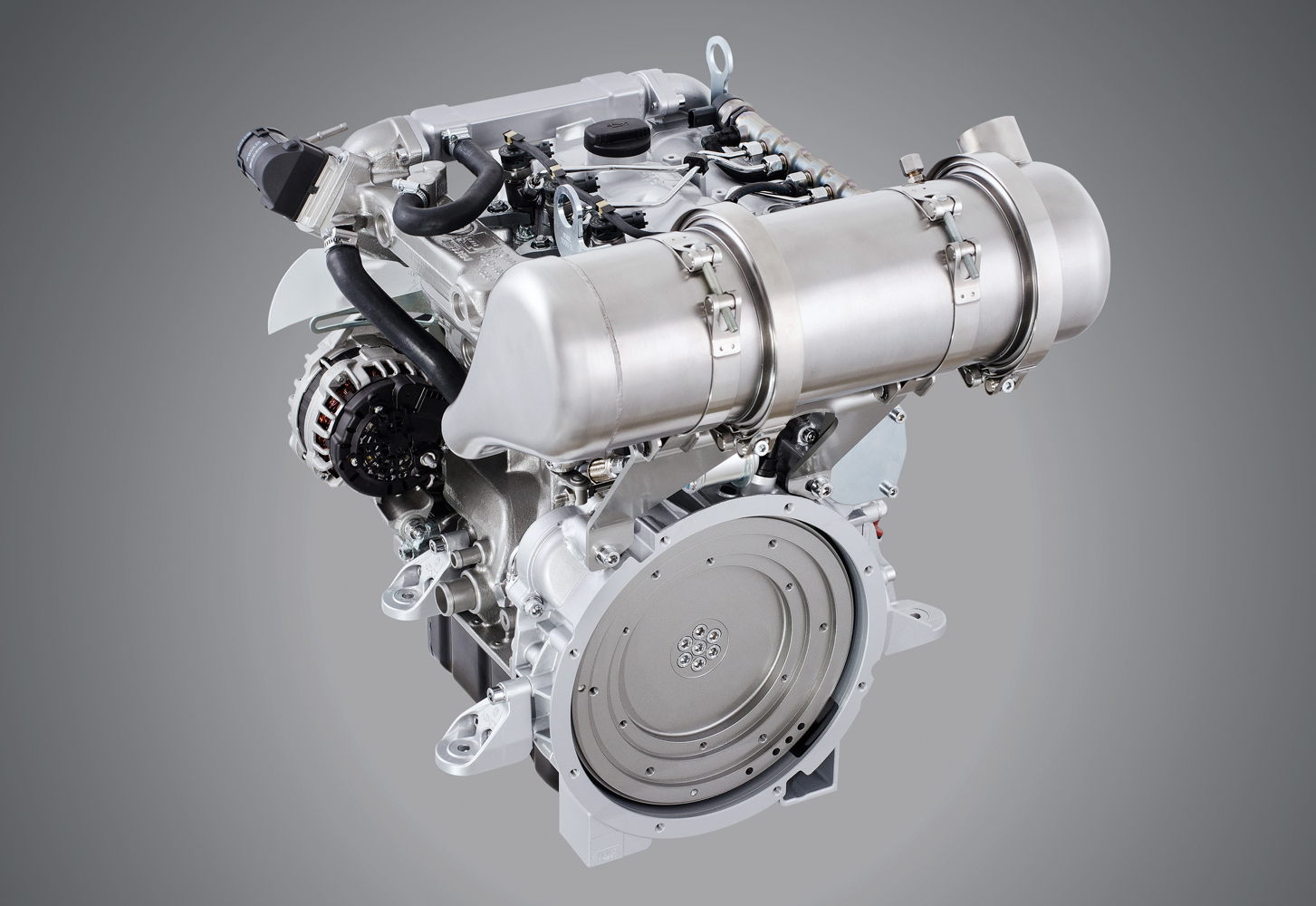

However, the anticipated requirements of the new EU Stage V emission level cannot be fulfilled by diesel engines in this power class without diesel particulate filters. In conjunction with a DPF the Hatz 3H50TICD is optimally prepared for future emission standards while performance is the same. Thereby the customized configuration of the Hatz diesel particulate filter system optiHEAT ensures an optimum length between two regeneration intervals.

Open Power Unit: the plug’n’play solution

The Hatz OPU concept is ideal for equipment manufacturers who have less capacity for specification of radiators, tubing and wiring of electronics, due to a tremendous ease of installation. The main application areas are primarily working machines such as hydraulic lifts, hydraulic power units, forestry machinery, drilling rigs and stationary applications such as pumps and generators. All H-series engines are also available as an OPU version. The customer only needs to connect the fuel supply, control box and battery.

New Hatz H-series brochure

The re-issued brochure “Power packages in a small space” provides an overview and more details about the Hatz H engine series. It is available free of charge directly from Motorenfabrik Hatz or is available to download along with other information from the internet at www.hatz-diesel.com.

Short links

Website: hatz.com/en/3H50
Brochure: hatz.com/brochure-H50-en

Model overview and technical data

* according to the proposal of the EU Commission from September 25^th, 2014
** measures without DOC/DPF or DOC respectively
